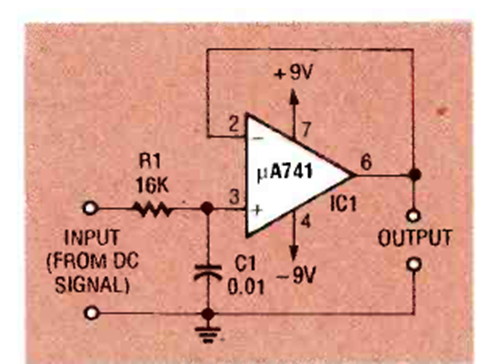

This circuit for a frequency of 1 kHz uses a symmetrical source. Other operational circuits can be tested. We found it in the magazine Electronics now of August 1993.
First-order active filter with the 741 (CB25593E)
