Automatic Shutdown Relay 4001 (CB25743E)

Details
Written by: Newton C. Braga

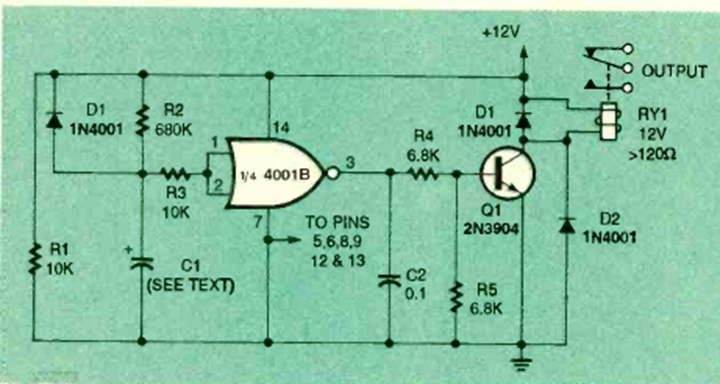

We found this circuit in the July 1994 Radio Electronics magazine. The circuit uses a general-purpose transistor, and the power supply can be up to 12 V depending on the relay.
