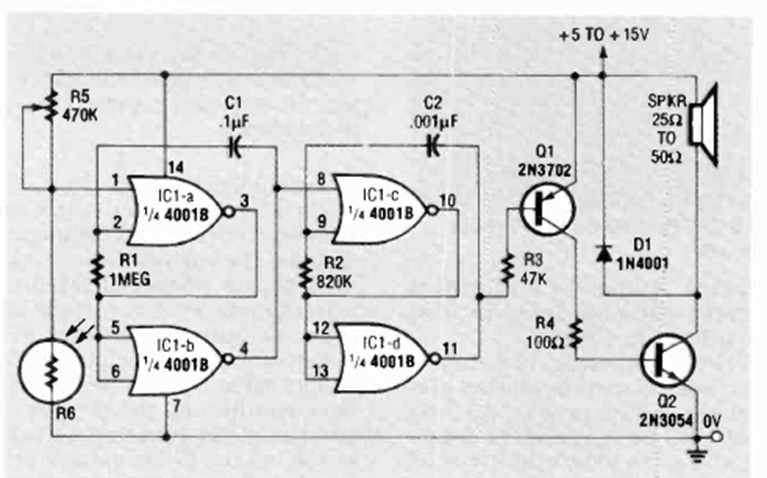

Passage Alarm with High Power Output (CB25485E)

Details
Written by: Newton C. Braga



This circuit was found in the July 1992 Radio Electronics magazine. The output circuit must be equipped with a heat sink.
