Second-Order Low Pass Filter (CB25814E)

Details
Written by: Newton C. Braga

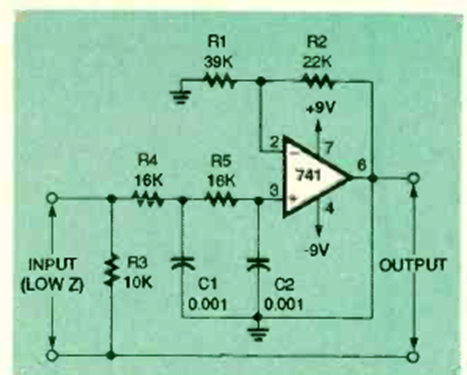

This 10 kHz filter is based on a 741 operational amplifier. The circuit is from Electronics Now magazine, February 1995. The operational amplifier must be powered by a symmetrical source.
