567 Tone Switch (CB25789E)

Details
Written by: Newton C. Braga

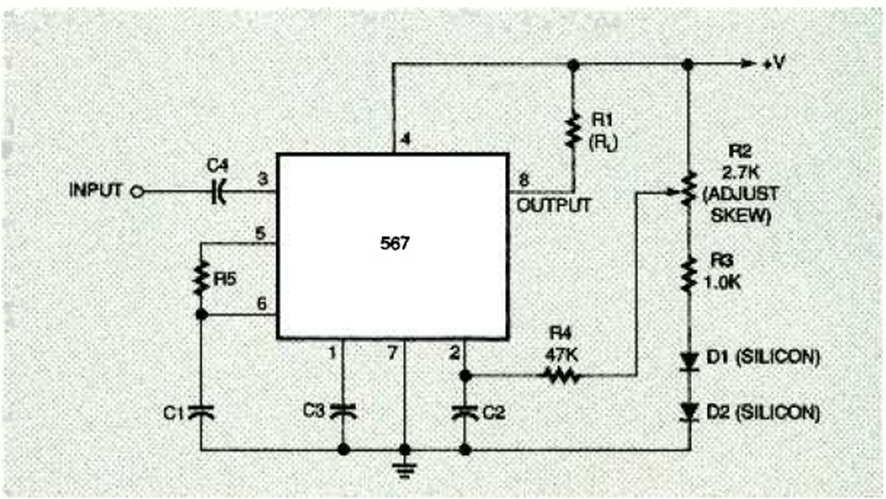

This tone recognizer circuit that relies on R5 and C1 was found in the December 1994 issue of Electronics Now. The circuit operates on voltages from 6 to 12 V typically.




| Clique na imagem para ampliar |
