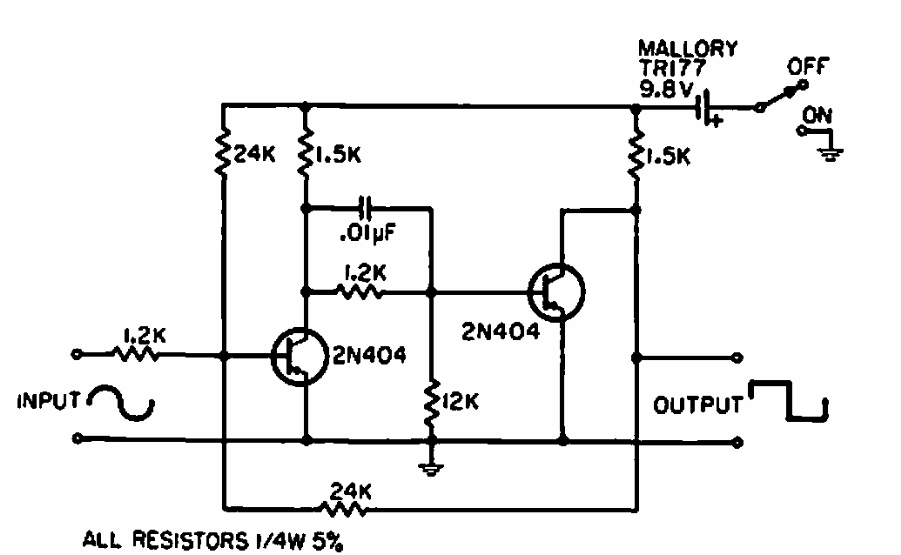

Found in American documentation this circuit uses transistors of the time. The circuit can be made with current components. It works as a trigger working with 600 ohm signals.
| Clique na imagem para ampliar |
Sine to Square Converter (CB6586E)
