1 kW SCR Flip Flop Flasher (CB6767E)

Details
Written by: Newton C. Braga

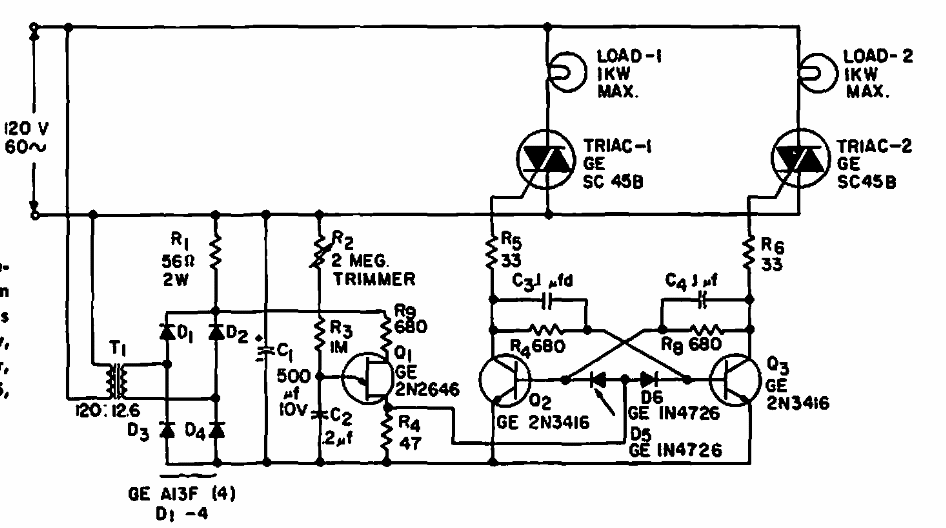

    This circuit was obtained from a 1966 General Electric manual. The circuit applies only to incandescent lamps that alternately flash at a frequency given by R2. Transistors may be current equivalents of general use.
