Dwell Angle Analyzer (CB6335E)

Details
Written by: Newton C. Braga

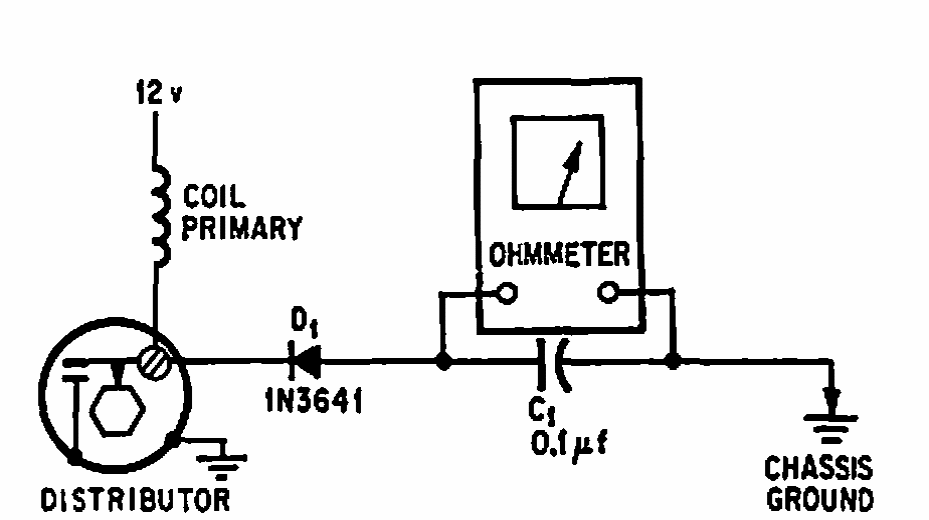

    Found in a 1968 US documentation, this circuit shows how to use the resistance-scale multimeter to analyze the dwell angle of old platinum cars.
