Anti echo for LASER (CB7228E)

Details
Written by: Newton C. Braga

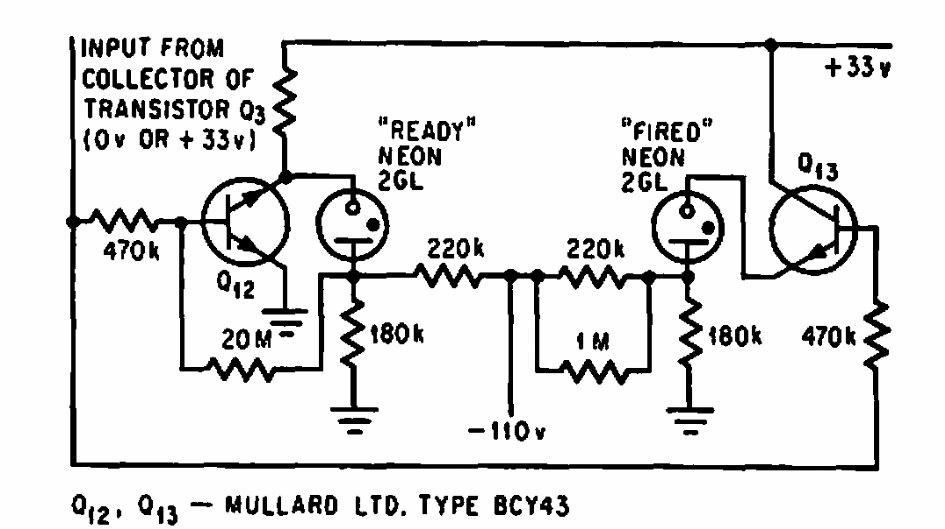

    This circuit is used in a LASER detection system to avoid echoes from short distances in systems up to 1 mile. The circuit is from a 1967 documentation.




| Clique na imagem para ampliar |
