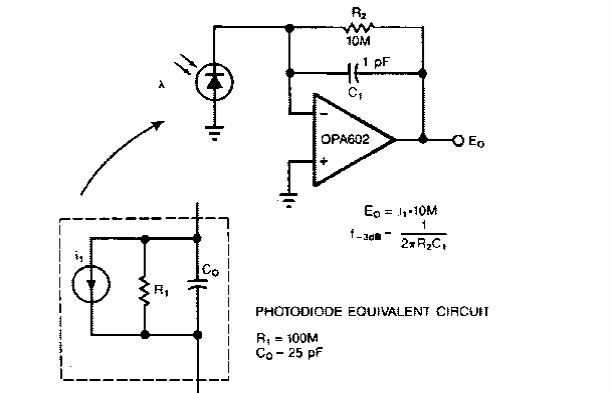

Amplifier for photodiode 1 (CB6787E)

Details
Written by: Newton C. Braga



We found this circuit in Harris' 90s documentation. The circuit applies to modern operational amplifiers.
