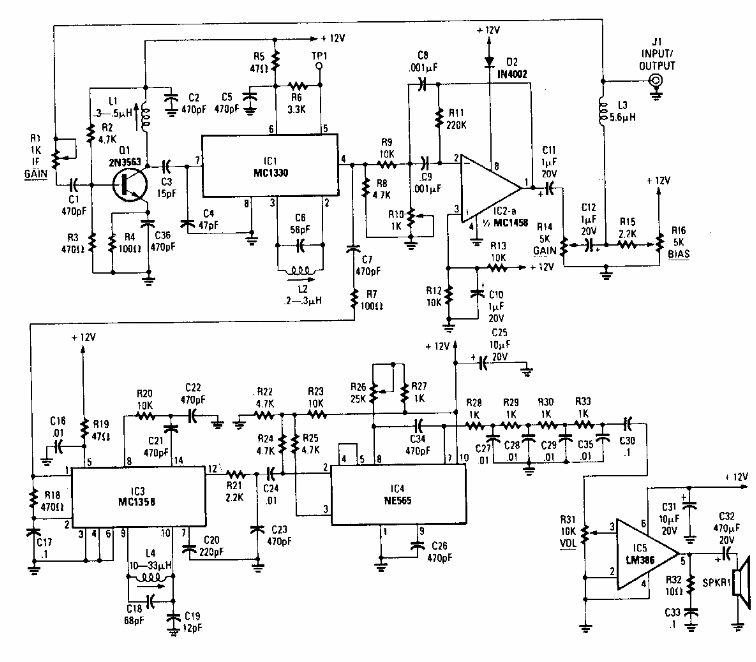

This circuit was obtained from an 80's Radio Electronics. The circuit decodes “scrambled” or sinusoidal encoded signals by providing an audio signal at the output.
| Clique na imagem para ampliar |
Sinusoidal descrambler (CB6198E)
- Details
- Written by: Newton C. Braga
