High speed FET switch (CB6928E)

Details
Written by: Newton C. Braga

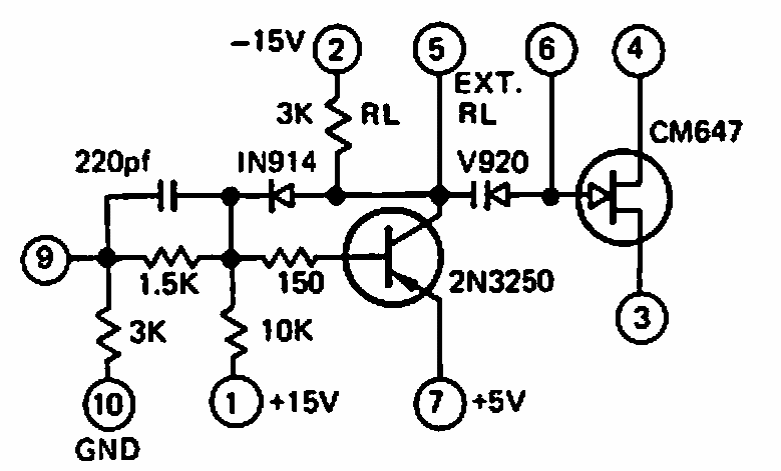

     Found in American documentation from 1969, this circuit switches signals with a FET of the time. The circuit can be implemented with modern equivalent transistors.




| Clique na imagem para ampliar |
