Erase oscillator (CB7338E)

Details
Written by: Newton C. Braga

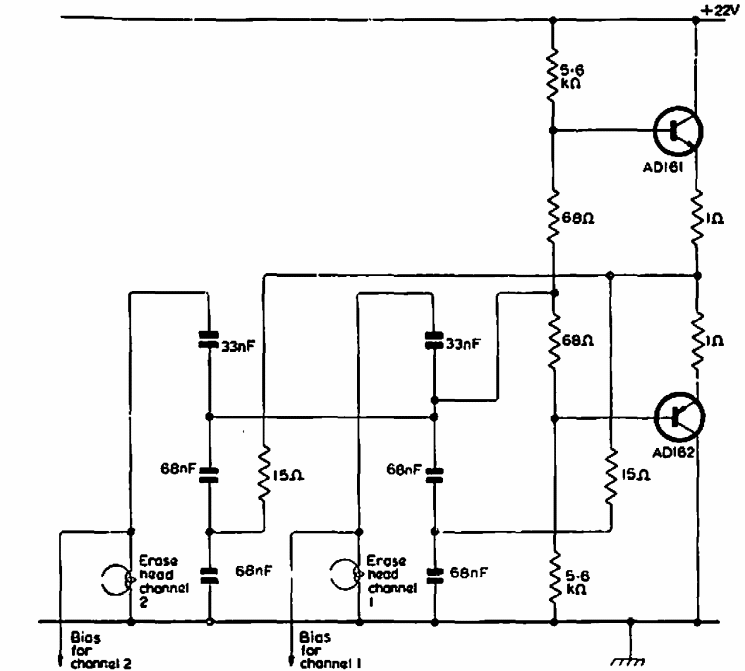

     Suggested by Mullard in a1969 documentation, this circuit generates the erasure signal for tape recorders of the time. Transistors can be modern equivalents like BD136 and BD136.




| Clique na imagem para ampliar |
