1 kW Light Controlled Flasher (CB6764E)

Details
Written by: Newton C. Braga

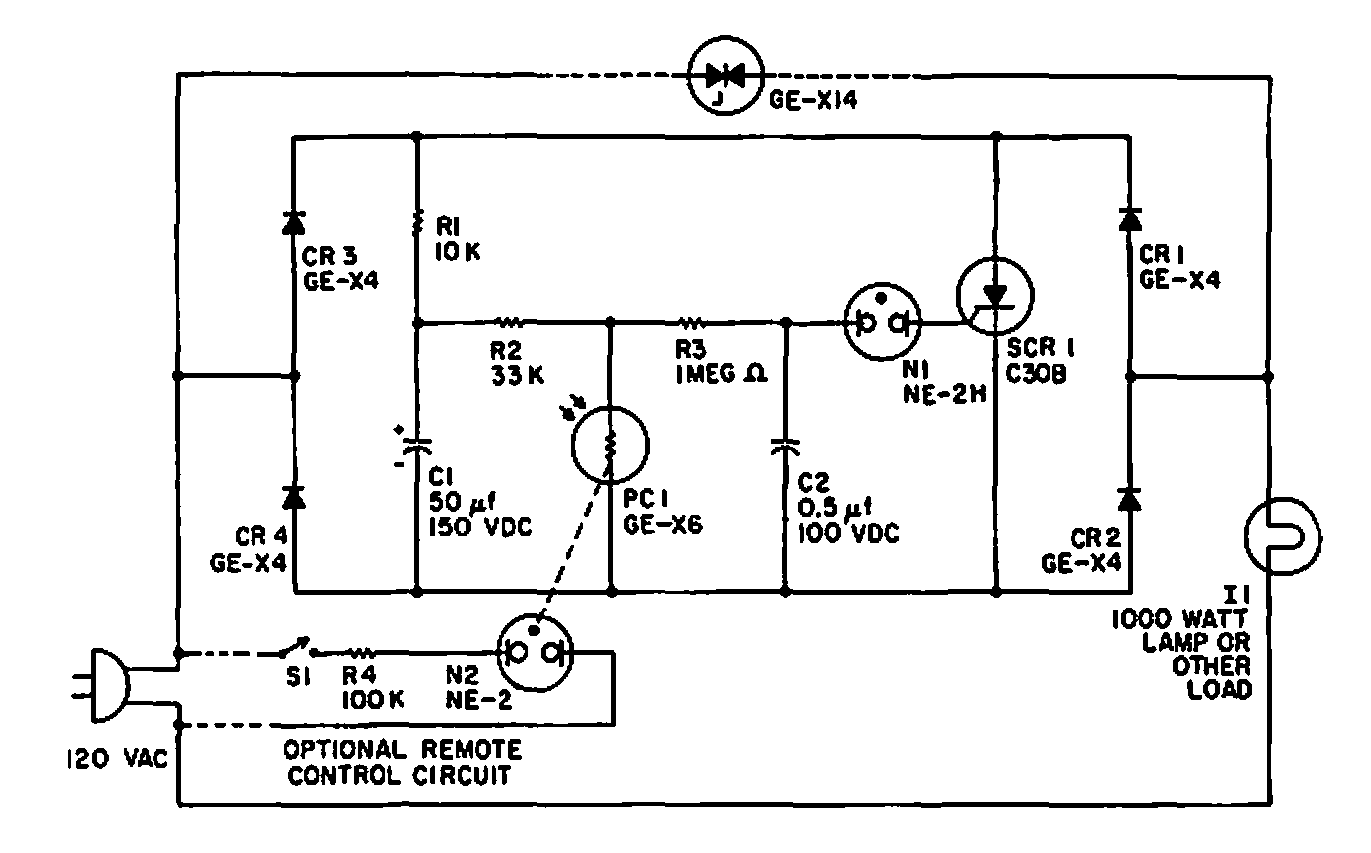

     Suggested by General Electric in 1965 documentation, this flasher has a control circuit with a neon-light optic coupler and LDR. The circuit is for incandescent lamps.




| Clique na imagem para ampliar |
