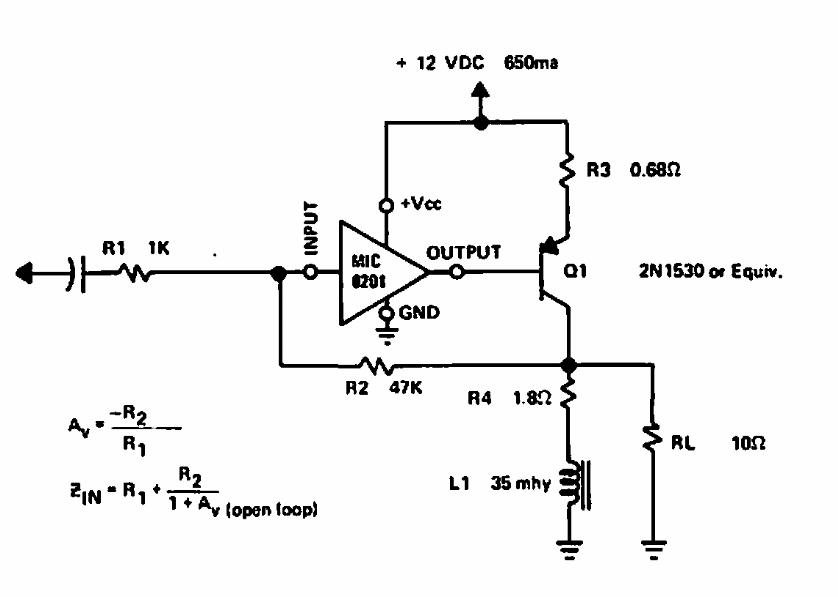

This 1968 Mallory circuit uses an uncommon integrated circuit today. The circuit has a 30 to 20,000 Hz response with lower power and is powered by 12 V.
| Clique na imagem para ampliar |
4.5 W Amplifier (CB6298E)
- Details
- Written by: Newton C. Braga
