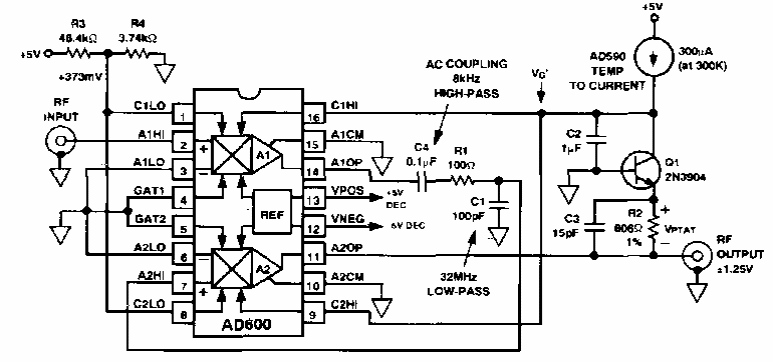

3 MHz System with AGC (CB6480E)

Details
Written by: Newton C. Braga



     This circuit makes use of an unusual Analog Devices component today. The circuit is from a 90's documentation. The amplifier has 80 dB gain.
