15W Amplifier (T483E)

Details
Written by: Newton C. Braga

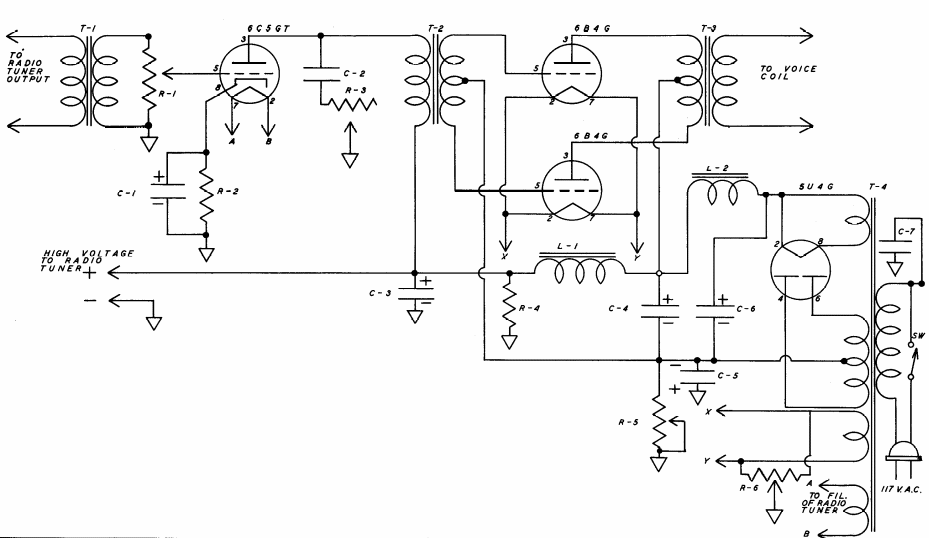

This is a low-gain amplifier to operate as a booster. We found it in an American documentation from 1947. The circuit uses a coupling transformer at the input.










| Clique na imagem para ampliar |




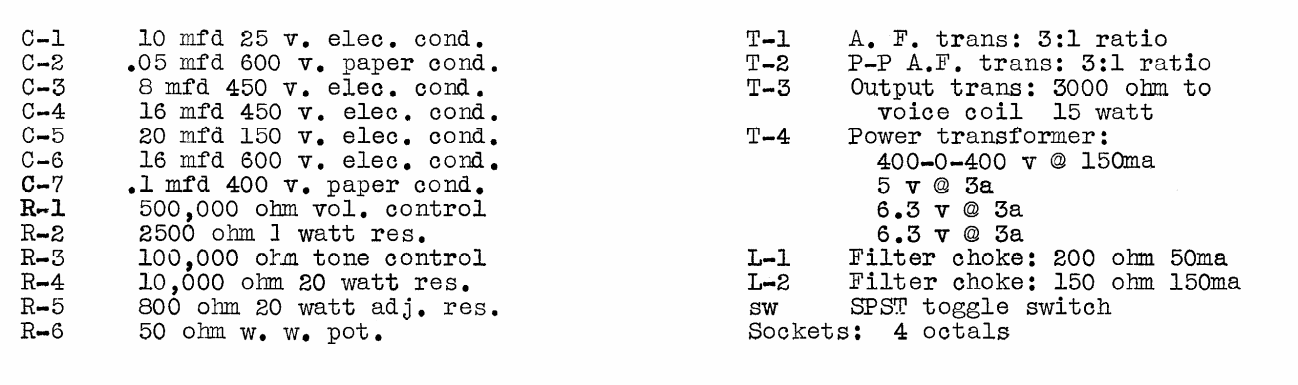

| Clique na imagem para ampliar |
