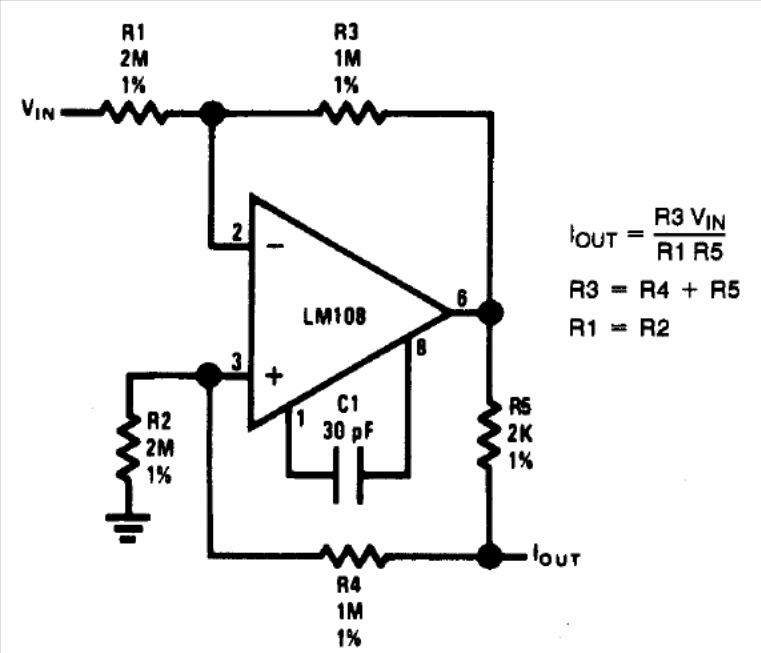

This circuit is from the 1994 Linear Applications Handbook, published by National Semiconductor, which is now a Texas Instruments group company. The circuit can be implemented with other operational amplifiers and the formulas for calculating the components are attached to the diagram. The power supply must be symmetrical.
| Clique na imagem para ampliar |
