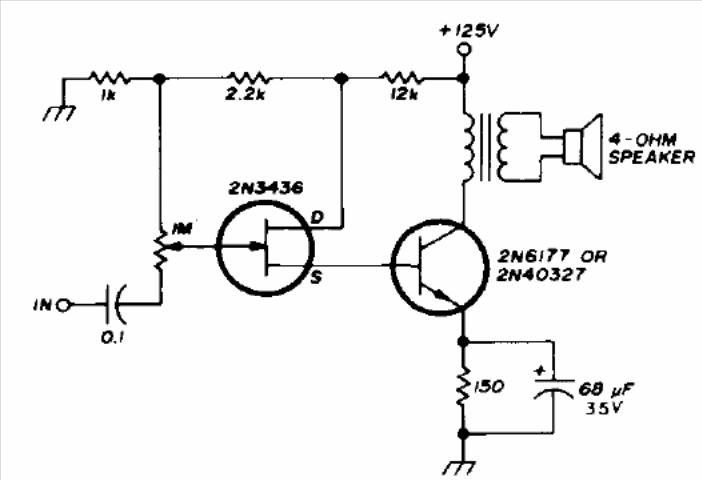

This audio step operates directly with the 110 V mains voltage rectified and reduced. The output transistor has no equivalent, and the transformer is an output type for tube receivers. The circuit is from 1976 documentation for radio amateurs.
