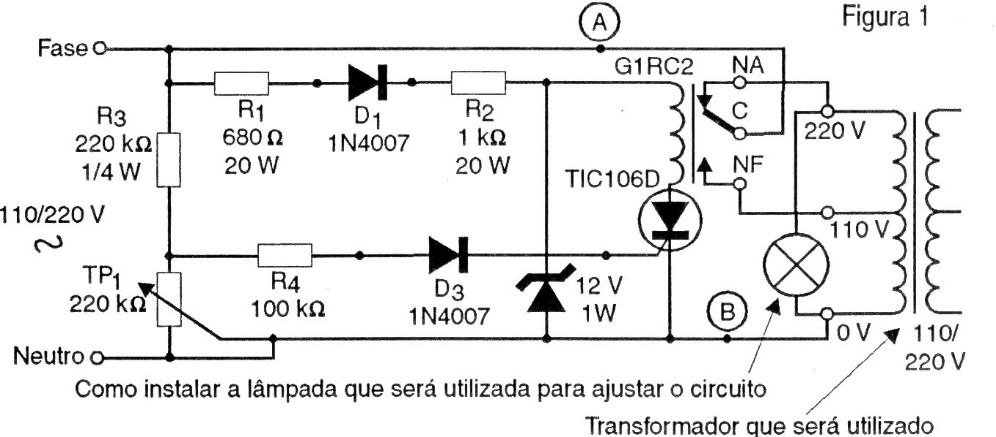

This circuit automatically switches the mains voltage to a transformer. The circuit is from 1997 and the components used are still common in our market. The SCR does not need a heatsink and the trip adjustment, as the voltage is made in P1.
| Clique na imagem para ampliar |
