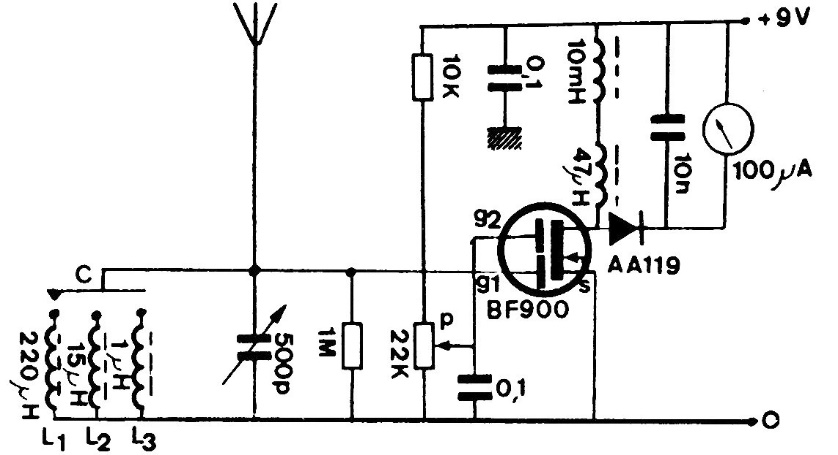

FET Field Strength Meter (CB19194E)

Details
Written by: Newton C. Braga



This circuit covers 400 kHz to 40 MHz in three bands according to the selected coil. The double MOSFET allows equivalent, since the original is not easy to obtain.
