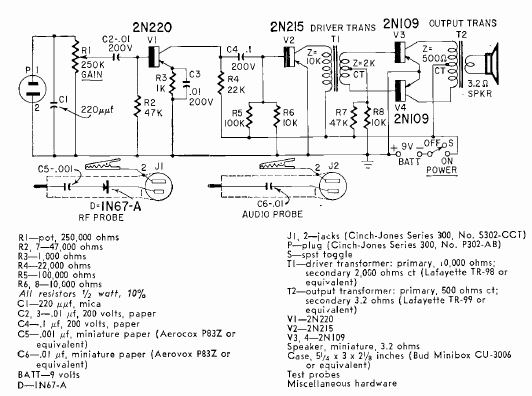

This 4-transistor signal tracer or follower was found in Radio Electronics magazine from May 1960. The circuit has a speaker output and features for following RF signals with a diode bridge.
Signal tracer (CB23671E)
- Details
- Written by: Newton C. Braga
