9V Eliminator (CB23752E)

Details
Written by: Newton C. Braga

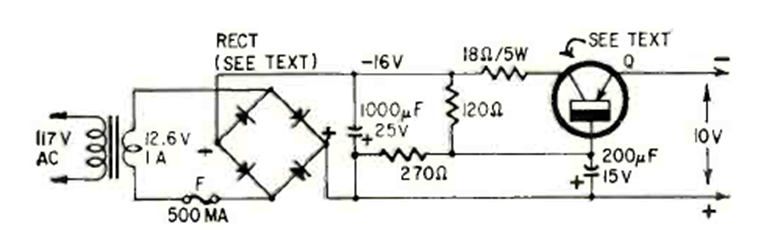

This 9 V battery eliminator was found in Radio Electronics magazine from June 1966. The transistor is of medium power and must be equipped with a small heat sink.
