Grid dip oscillator (CB22323E)
- Details
- Written by: Newton C. Braga

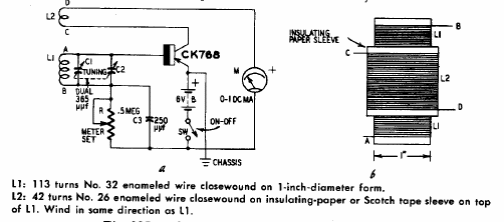

This grid dip meter was found in old American documentation. The range is from 350 kHz to 1700 kHz. The coil is made as indicated. The transistor is germanium.
