Headlight On Reminder (CB26292E)

Details
Written by: Newton C. Braga

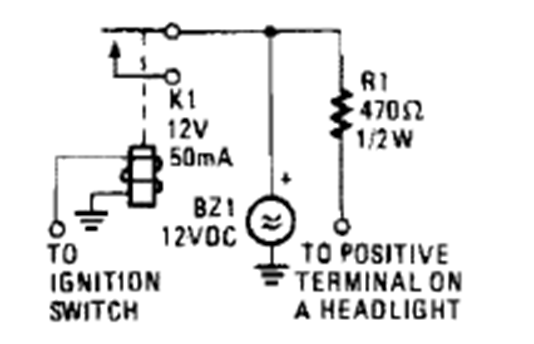

Found in a 1990s Popular Electronics, this circuit keeps a buzzer going if the car is turned off with the headlights on. The relay is a low-power 12V relay.
