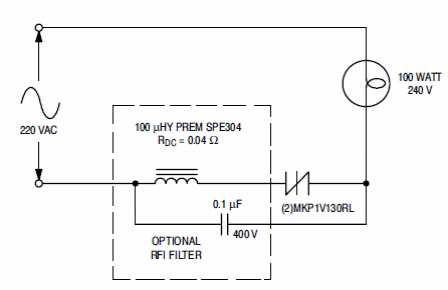

This circuit using a SIDAC is suggested by ON Semiconductor in its thyristor manual. The circuit is for incandescent lamps only and with appropriate SIDAC also works on the 110V grid.
![](/images/sampledata/cir/CB4241E9g_0001.gif)
This circuit using a SIDAC is suggested by ON Semiconductor in its thyristor manual. The circuit is for incandescent lamps only and with appropriate SIDAC also works on the 110V grid.
